Minicargadora compacta QL-390T

Max. travel speed：4kilómetros por hora

Max. ground clearance：190milímetro

Max. pin height：2590mm

Max. turning radius：1660mm

Max. bucket tilt angle：107°

Solicitud:

Características:

Motor de alta eficiencia y ahorro de energía, que cumple con los estándares internacionales de emisiones.
Sistema hidráulico avanzado, que aumenta la eficiencia del trabajo mediante 30%
Diseño ergonómico de la cabina, que reduce la fatiga del operador
Sistema de monitoreo inteligente para monitorear el estado del equipo en tiempo real
Componentes estructurales duraderos para una vida útil prolongada
Múltiples modos de trabajo para adaptarse a diferentes condiciones de trabajo.

Comparte esto:

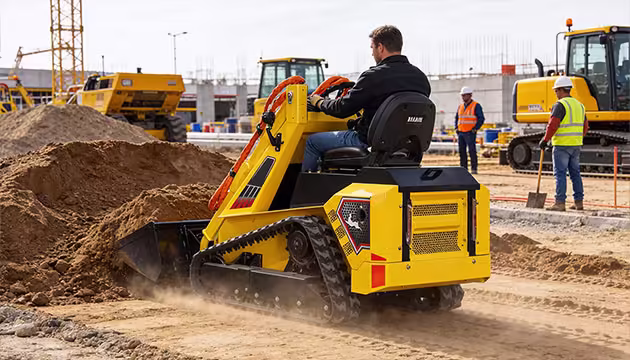

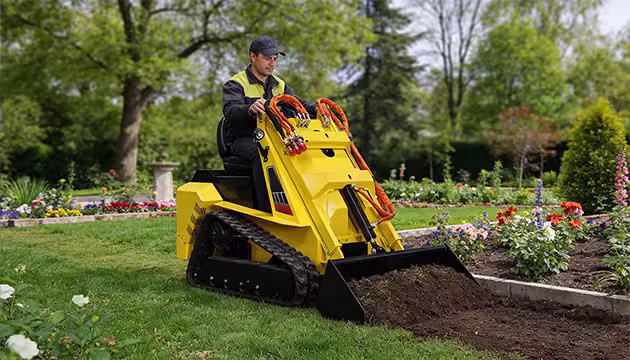

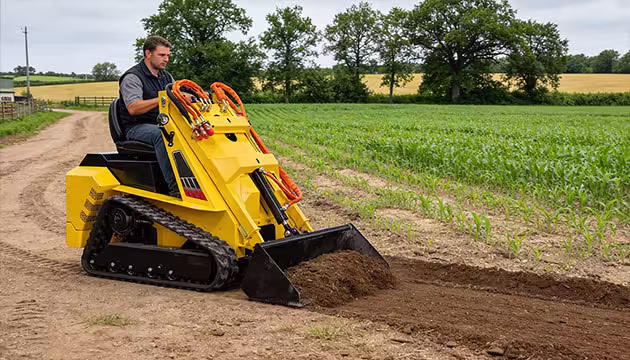

Escenarios de aplicación

25 1 26 1 27 1 28 1

Descripción del Producto

los QL-390T Minicargador de dirección deslizante is a versatile and efficient construction machine designed for heavy-duty material handling in extremely confined spaces. With an increased operating weight of 1000 kg, it offers enhanced stability and excellent maneuverability while maintaining a rated operating capacity of 300 kg, making it ideal for landscaping, residential construction, and interior demolition projects.

Powered by a selection of reliable engines from ROTO, Koop, or BRIGGS & STRATTON entregando 13.5 HP at 3600 rpm, this loader ensures high-torque performance and consistent power. Its advanced 20 MPa hydraulic system and dual 20L fuel and oil tanks provide precise control and extended operational life, meeting the demands of both professional contractors and the equipment rental market.

The ultra-compact chassis width of 1000 mm and a turning radius of 1660 mm allow the machine to navigate efficiently through narrow gates and restricted job sites. Despite its small footprint, it achieves a significant maximum working height of 2590 mm and a dump height of 2050 mm, ensuring high efficiency when loading trucks or moving materials in tight urban environments.

Ventajas clave

Ultra-Compact Design for Narrow Access

Slim 1000 mm overall width allows for effortless passage through standard gates and narrow side-alleys.
Short 1615 mm chassis length (without bucket) enables operation in extremely confined urban job sites.
A tight 1660 mm turning radius ensures maximum agility in restricted environments.

Superior Stability & Ground Grip

Robusto 1000 kg operating weight provides a low center of gravity for steady lifting.
Extendido 1030 mm ground contact length improves traction and stability on soft or uneven terrain.
Alto 30° departure angle allows for easy loading onto ramps and navigation over obstacles.

Efficient Loading & Reach

Máximo working height of 2590 mm provides ample vertical reach for various attachments.
2050 mm dump height facilitates efficient loading into high-sided trailers or waste bins.
Grande 1050 mm bucket width maximizes material volume moved per cycle.

Reliable & Maintenance-Friendly Power

Powered by world-class engine options including Briggs & Stratton or Koop, delivering a reliable 13,5 CV.
20 MPa high-pressure hydraulic system offers smooth, responsive power for demanding tasks.
Grande 20L fuel and oil tanks reduce downtime by extending intervals between refueling.

Parámetro

Categoría	Parámetro	Unit	Valor
Actuación	Peso operativo	kg	1000
	Rated operating capacity	kg	300
	Tipping load	kg	500
	Max. travel speed	kilómetros por hora	4
Engine & System	Marca del motor	–	ROTO / Koop / BRIGGS & STRATTON
	Potencia del motor	HP/rpm	13.5 / 3600
	System pressure	MPa	20
	Fuel / Oil tank capacity	L	20 / 20
Dimensiones	Altura total	milímetro	1985
	Overall length (with bucket)	milímetro	2105
	Overall length (without bucket)	milímetro	1615
	Ancho total	milímetro	1000
	Wheelbase (Track base)	milímetro	790
	Ground contact length	milímetro	1030
Rango de trabajo	Overall working height	milímetro	2590
	Dump height	milímetro	2050
	Dump reach	milímetro	855
	Ancho del cucharón	milímetro	1050
