China 100HP Tractor Supplier QL-100
As the flagship model, QL1004(B) delivers 100 hP with a high-pressure common rail engine, achieving an injection pressure of 1800bar for finer fuel atomization. It reduces fuel consumption by 8% per 100km and meets National IV emission standards.
Its 12F+12R shuttle shift system features a “steering wheel side-mounted” design, with the F-R reverse lever located on the right side of the steering wheel. Combined with a fully flat floor, it minimizes driver movement during direction changes, reducing fatigue by 30% during continuous operation.
The vehicle body adopts a modular design, with an optional cab equipped with heating and air conditioning, and a suspension seat. The noise insulation reaches 60 decibels, significantly enhancing operational comfort.
The hydraulic system uses load-sensing technology, automatically adjusting flow based on equipment needs. When driving a 3-meter-wide combined soil preparation machine, energy consumption is 15% lower than traditional systems.
The three-point linkage lifting capacity reaches 1800kg, supporting 5-ton agricultural machinery. With optional third and fourth hydraulic outputs, it can drive intelligent equipment like precision seeders and variable-rate fertilizes, enabling full mechanization of “tilling, sowing, and management.”
Reliability of key components is further upgraded: the engine block is made of vermicular cast iron, increasing explosion resistance by 40%; the gearbox uses maintenance-free bearings with a service interval extended to 2000 hours; the PTO output shaft comes standard with a safety clutch that automatically cuts off power when equipment jams, preventing component damage.
Additionally, the vehicle reserves smart terminal interfaces for integration with agricultural IoT systems, enabling operation trajectory recording, fuel consumption monitoring, and fault early warning—serving as both a high-intensity “powerhouse” and an “intelligent carrier” for smart agriculture.
If you need a 100HP tractor, please contact us, Qilu will provide you with expert service！
Key Advantages
Key Features

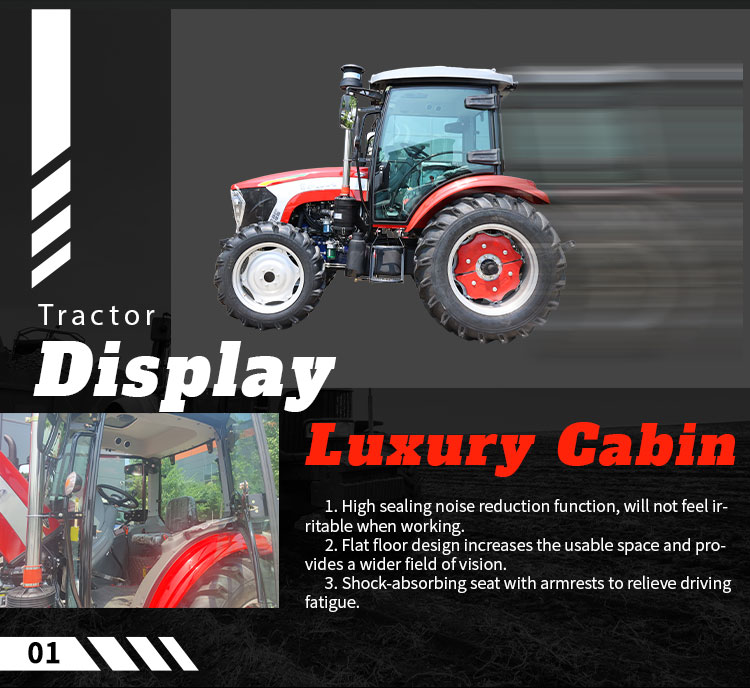

Luxury Cabin
-
High sealing noise reduction function, will not feel irritable when working.
-
Flat floor design increases the usable space and provides a wider field of vision.
-
Shock-absorbing seat with armrests to relieve driving fatigue.

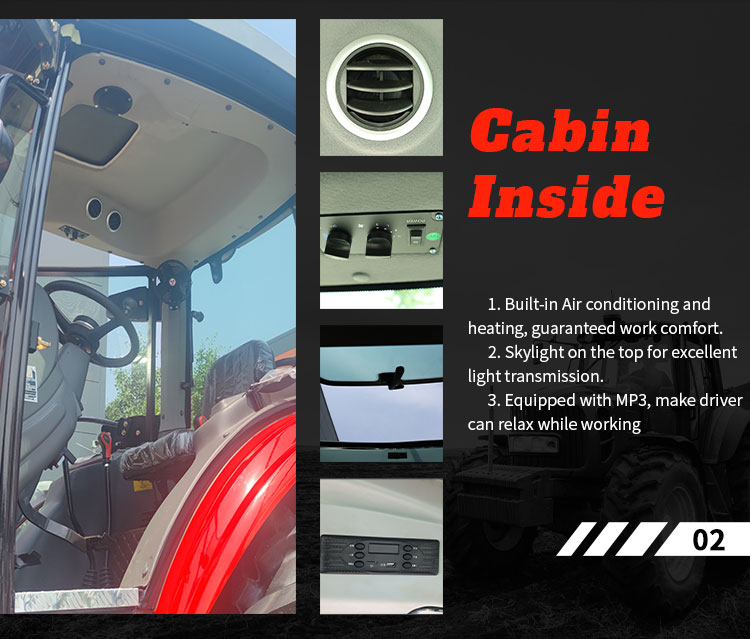

Cabin Inside
-
Built-in Air conditioning and heating, guaranteed work comfort.
-
Skylight on the top for excellent light transmission.
-
Equipped with MP3, make driver can relax while working

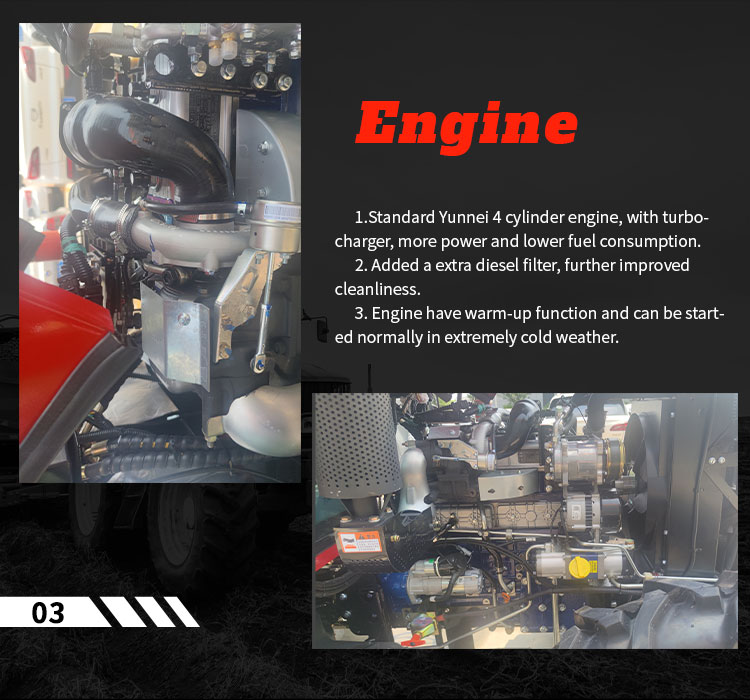

Engine
-
Standard Yunnei 4 cylinder engine, with turbocharger, more power and lower fuel consumption.
-
Added a extra diesel filter, further improved cleanliness.
-
Engine have warm-up function and can be started normally in extremely cold weather.

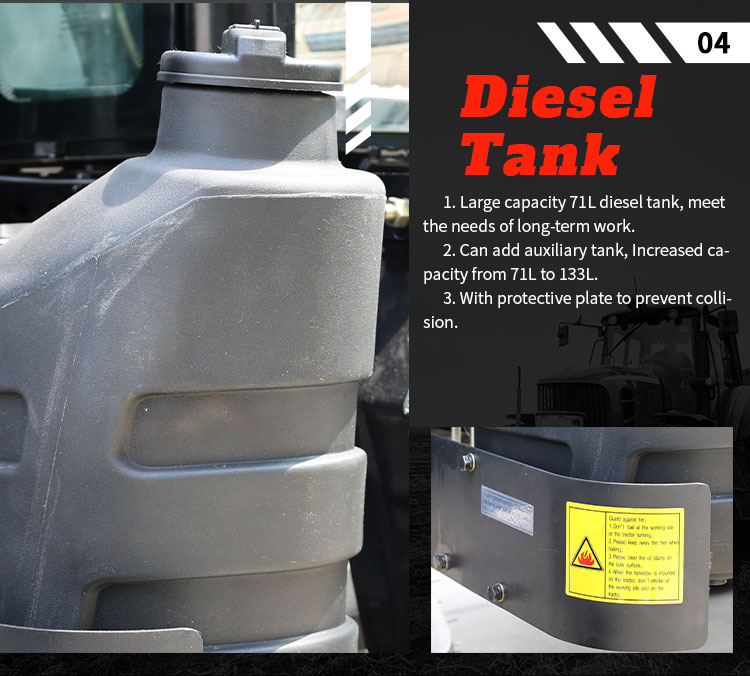

Diesel Tank
-
Large capacity 71L diesel tank, meet the needs of long-term work.
-
Can add auxiliary tank, Increased capacity from 71L to 133L.
-
With protective plate to prevent collision.

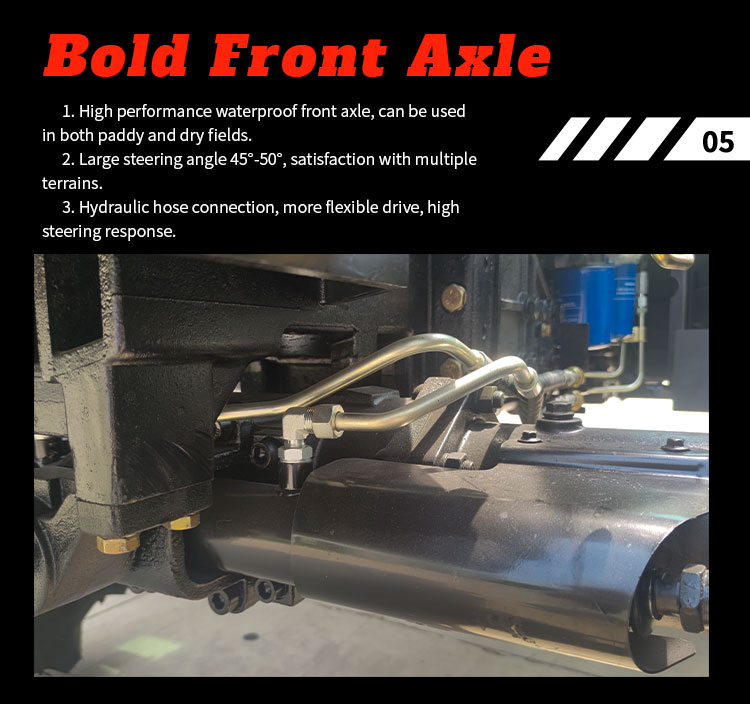

Bold Front Axle
-
High performance waterproof front axle, can be used in both paddy and dry fields.
-
Large steering angle 45°-50°, satisfaction with multiple terrains.
-
Hydraulic hose connection, more flexible drive, high steering response.

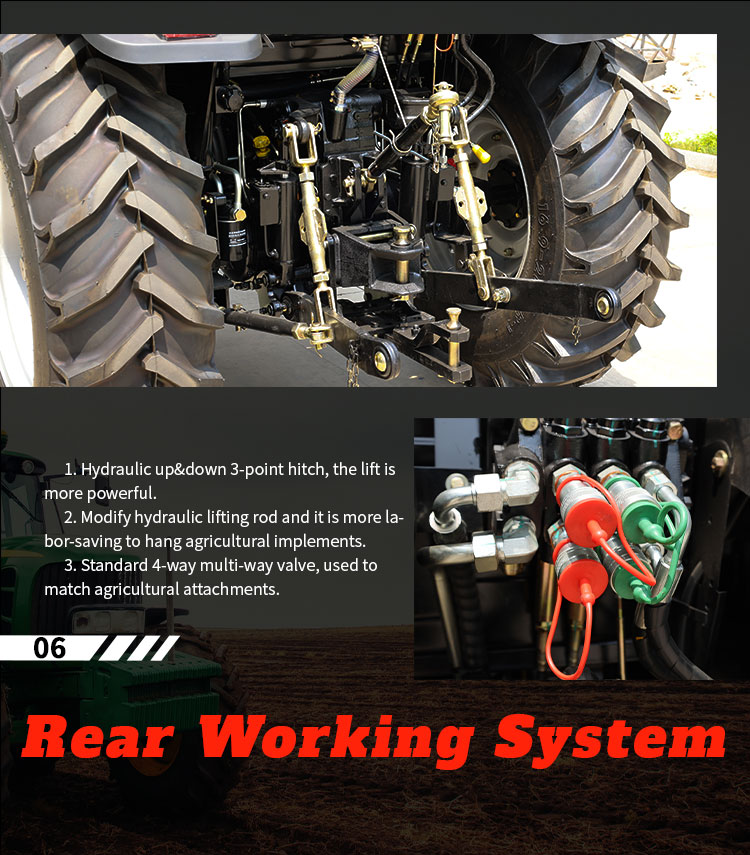

Rear Working System
-
Hydraulic up&down 3-point hitch, the lift is more powerful.
-
Modify hydraulic lifting rod and it is more labor-saving to hang agricultural implements.
-
Standard 4-way multi-way valve, used to match agricultural attachments.

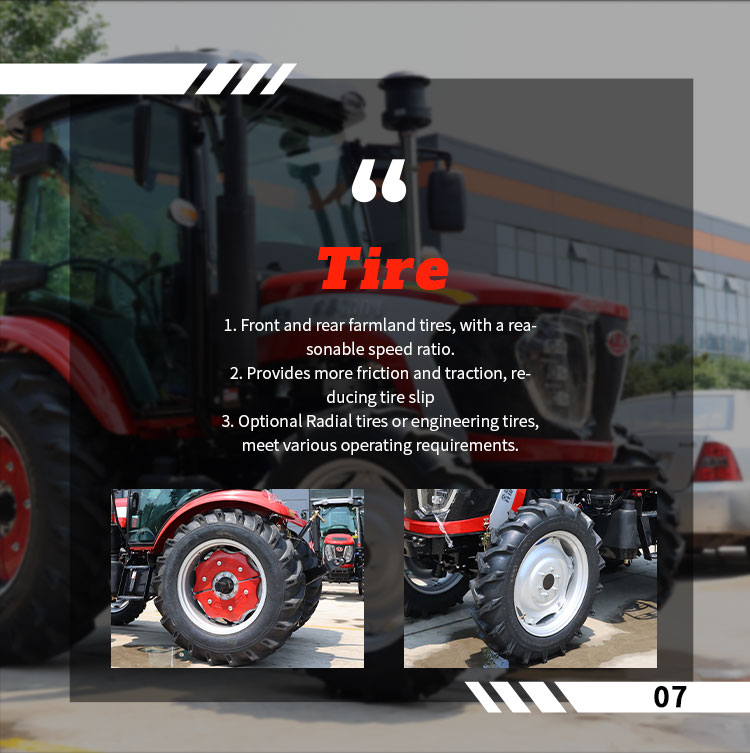

Tire
-
Front and rear farmland tires, with a reasonable speed ratio.
-
Provides more friction and traction, reducing tire slip.
-
Optional Radial tires or engineering tires, meet various operating requirements.
Our advantage
-
Excellent R&D and sales team, professional technicians provide one-to-one service to solve all your worries.
-
Carefully selected products with reliable quality control.
-
Located in China’s largest agricultural machinery industry cluster, Shandong Province, with obvious regional advantages and rich industrial resources.
-
With strong research team, we can help you find various types of products and save purchasing time.
After-sales service
-
We have professional technicians to provide technical support
-
Free maintenance for faults during the warranty period
-
24 hours online service to help you solve all problems
-
Free accessories for customers with every shipment
Parameter
| Category | Item | Specification |
| Dimensions & Weight | Overall Dimension (LWH) | 4200 *1800 *2630mm |
| Min. Operating Weight | 2980 kg | |
| Wheelbase | 2045 mm | |
| Wheel Track (Front/Rear) | 1350 / 1350–1600 mm (Steplessly adjustable) | |
| Engine | Model / Brand | Yangdong Stage II |
| Type | Vertical, water-cooling, four-stroke, common rail | |
| Cylinder Count | 4 | |
| Rated Power | 100 HP / 73.5 kW | |
| Rated Speed | 2200 r/min | |
| Drive Train | Clutch | Single disc, dry, independent control, dual stage |
| Gearbox | 12F + 12R | |
| Gear Shift Type | Shift sleeve | |
| Steering & Brake | Steering Type | Full hydraulic steering |
| Brake Type | Mechanical control, wet, disc | |
| Walking Device | Tire Size (Front/Rear) | 9.5-24 / 14.9-30 |
| Working Device | Suspension Type | Rear, three-point suspension, Category II |
| Adjustment Mode | Height adjustment, floating control | |
| Hydraulic Output | 2 groups | |
| Standard PTO Speed | 8 or 6 keys; 760/850 or 540/1000 rpm | |
| Safety & Optional | Protection | ROPS (Roll-over protection structure) |
| Optional Equipment | Luxury AC cabin, heating cabin, swing traction, quick suspension, Sida engine |
