140 HP Tractor Qilu-1404F features robust power and precision transmission, with all gears adopting a helical tooth meshing structure. This design effectively prevents tooth breakage, ensures smoother engagement, and significantly improves transmission efficiency. Equipped with a TF16+8 gearbox, it can be optionally fitted with a 24+8 ultra-slow crawling gear, precisely adapting to fine operations such as plowing, ditching, and sowing, with excellent low-speed stability.

It comes with a desert-type air filter, which has strong cleaning ability and advanced performance, enabling continuous and efficient operation even in harsh environments like dusty conditions and high-load work. The pipeline layout is scientific and reasonable, maximizing hydraulic energy transmission efficiency while ensuring a neat appearance. The 14-inch dry dual-action clutch ensures smoother shifting, can withstand greater torque output, and operates smoothly without jolts.

Standard with a U-shaped tow hitch, it can optionally be equipped with a pendulum-type traction device, compatible with trailers and various traction tools. The PTO speed offers two options: 540/1000 or 760/1000 rpm, and the 6-key output shaft meets international standards, compatible with a variety of agricultural machinery. It adopts a Daye brand gear pump identical to that of Deutz, with a semi-separated hydraulic system and a hydraulic flow of 44-52L, ensuring stable power output. An optional 10-inch reversing camera is available, supporting 8 languages including Chinese, English, and French, making operation convenient and meeting international operation needs. It is a reliable choice for efficient work under complex working conditions.

Key Advantages

Key Features

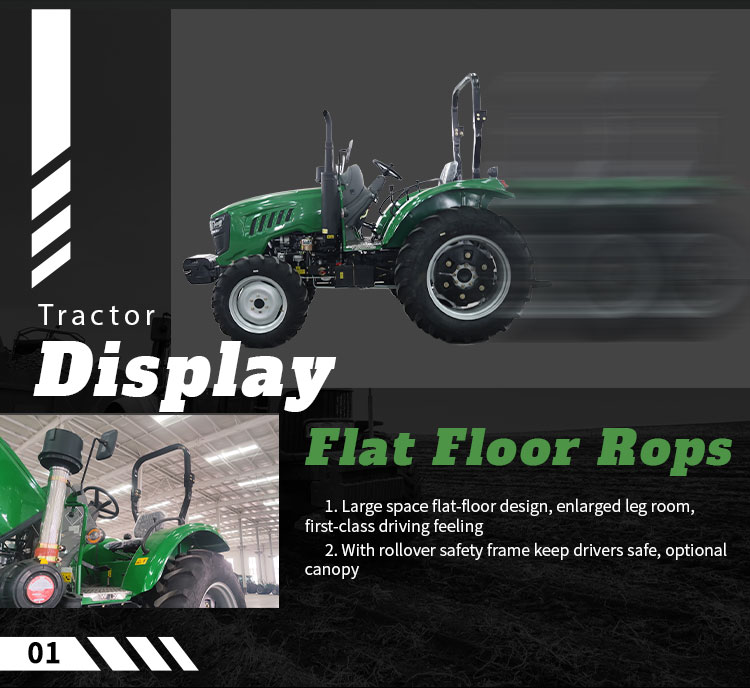

Flat Floor Rops

  • Large space flat-floor design, enlarged leg room, first-class driving feeling.

  • With rollover safety frame keep drivers safe, optional canopy.

Seat

  • Mechanical suspension shock-absorbing seat, optional air seats improve ride comfort.

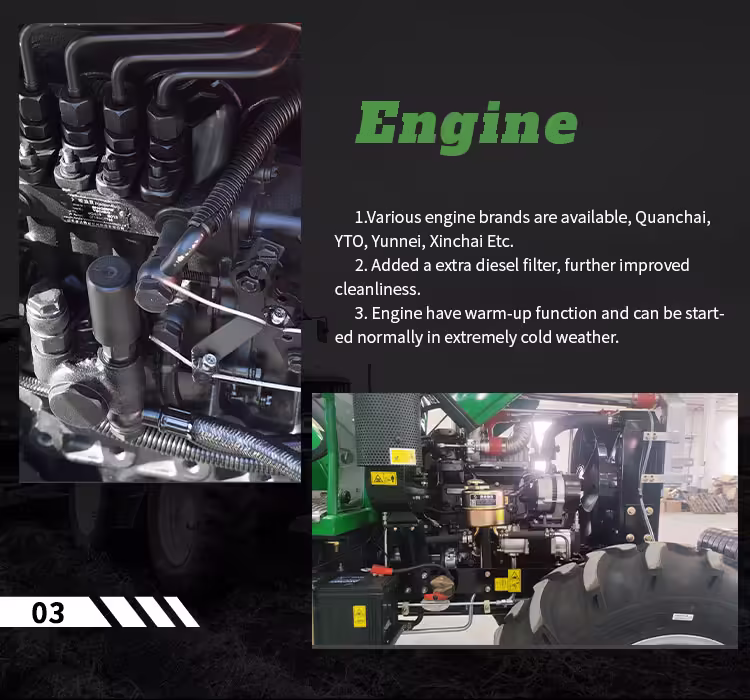

Engine

  • Various engine brands are available, Quanchai, YTO, Yunnei, Xinchai Etc.

  • Added a extra diesel filter, further improved cleanliness.

  • Engine have warm-up function and can be started normally in extremely cold weather.

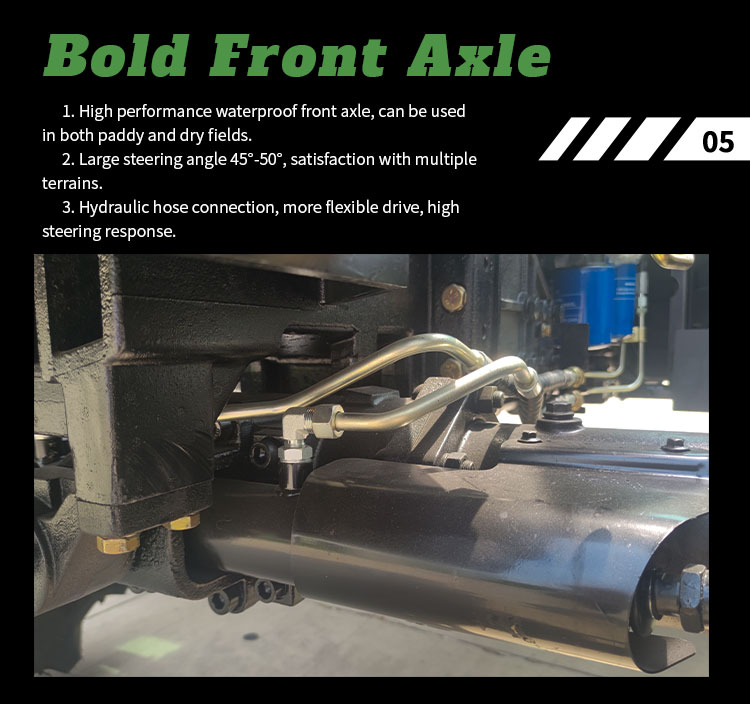

Bold Front Axle

  • High performance waterproof front axle, can be used in both paddy and dry fields.

  • Large steering angle 45°-50°, satisfaction with multiple terrains.

  • Hydraulic hose connection, more flexible drive, high steering response.

Tire

  • Front and rear farmland tires, with a reasonable speed ratio.

  • Provides more friction and traction, reducing tire slip.

  • Optional Radial tires or engineering tires, meet various operating requirements.

Our advantage

  • Excellent R&D and sales team, professional technicians provide one-to-one service to solve all your worries.

  • Carefully selected products with reliable quality control.

  • Located in China’s largest agricultural machinery industry cluster, Shandong Province, with obvious regional advantages and rich industrial resources.

  • With strong research team, we can help you find various types of products and save purchasing time.

After-sales service

  • We have professional technicians to provide technical support

  • Free maintenance for faults during the warranty period

  • 24 hours online service to help you solve all problems

  • Free accessories for customers with every shipment

Parameter

Category Item Specification
Dimensions & Weight Overall Dimension (L×W×H) 4600 *2300 *2950mm
Min. Operating Weight 4490 kg
Wheelbase 2300 mm
Wheel Track (Front/Rear) 1750, 1850, 1950 /  (Adjustable)
Engine Model / Brand YTO YT0140HP Stage II
Type Vertical, water-cooling, four-stroke, common rail
Cylinder Count 6
Rated Power 140 HP / 103 kW
Rated Speed 2200 r/min
Drive Train Clutch Single disc, dry, independent control, dual stage
Gearbox TDF 16 Forward + 8 Reverse
Gear Shift Type Shift sleeve
Steering & Brake Steering Type Full hydraulic steering
Brake Type Mechanical control, wet, disc
Walking Device Tire Size (Front/Rear) 12.4-24 / 16.9-34
Working Device Suspension Type Rear, three-point suspension, Category III
Adjustment Mode Height adjustment, floating control
Hydraulic Output 2 groups
Standard PTO Speed 8 or 6 keys; 760/850 or 540/1000 rpm
Safety & Optional Protection Cabin (Standard)
Optional Equipment Swing traction, quick suspension, Yuchai engine replacement, 14.9-26/18.4-38 tires, rear counterweight, 24+8 gearbox replacement
