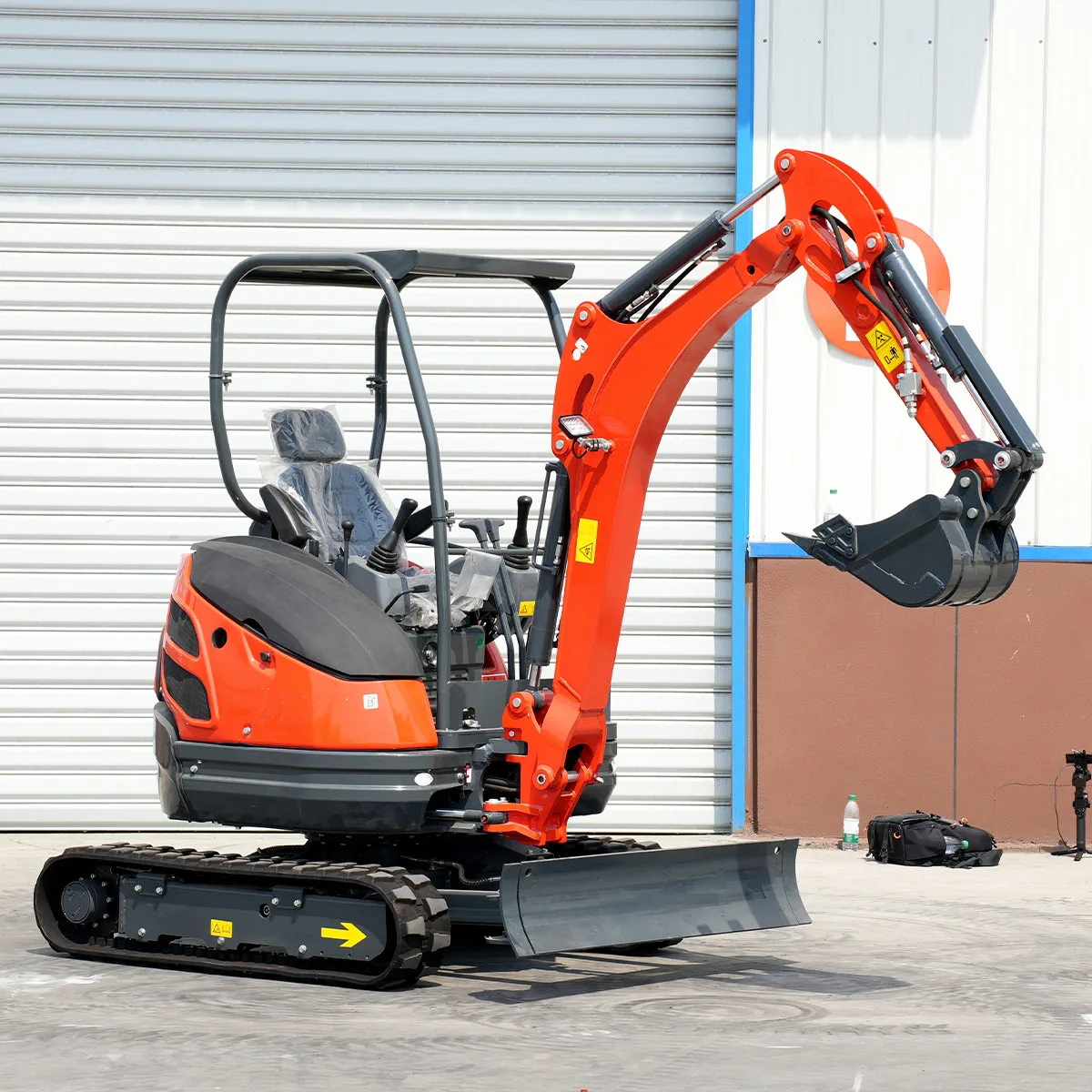

QL-25Pro - 25-Multi-angle real-shot image-Front right

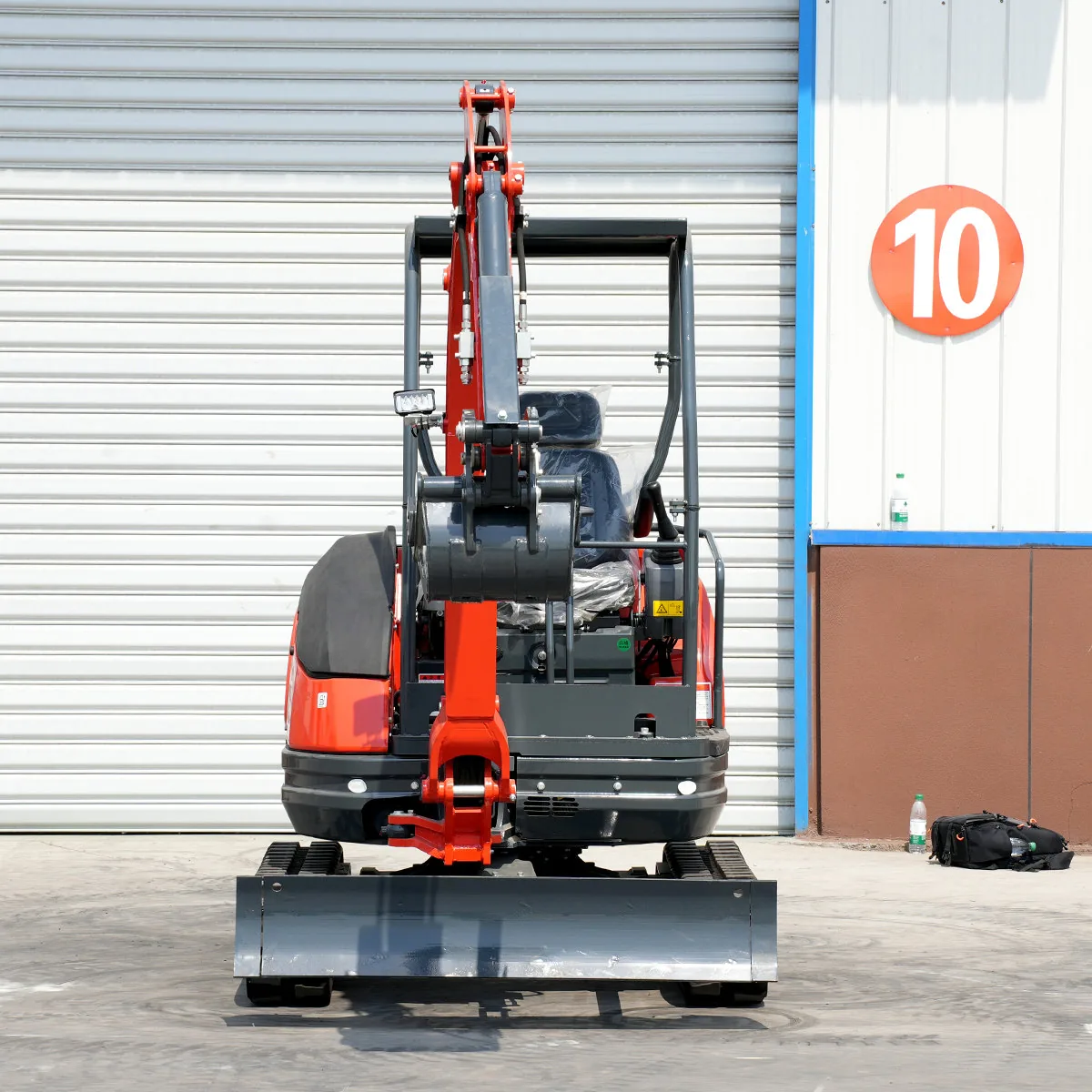

QL-25Pro - 25 – Real-life multi-angle photos – Front view

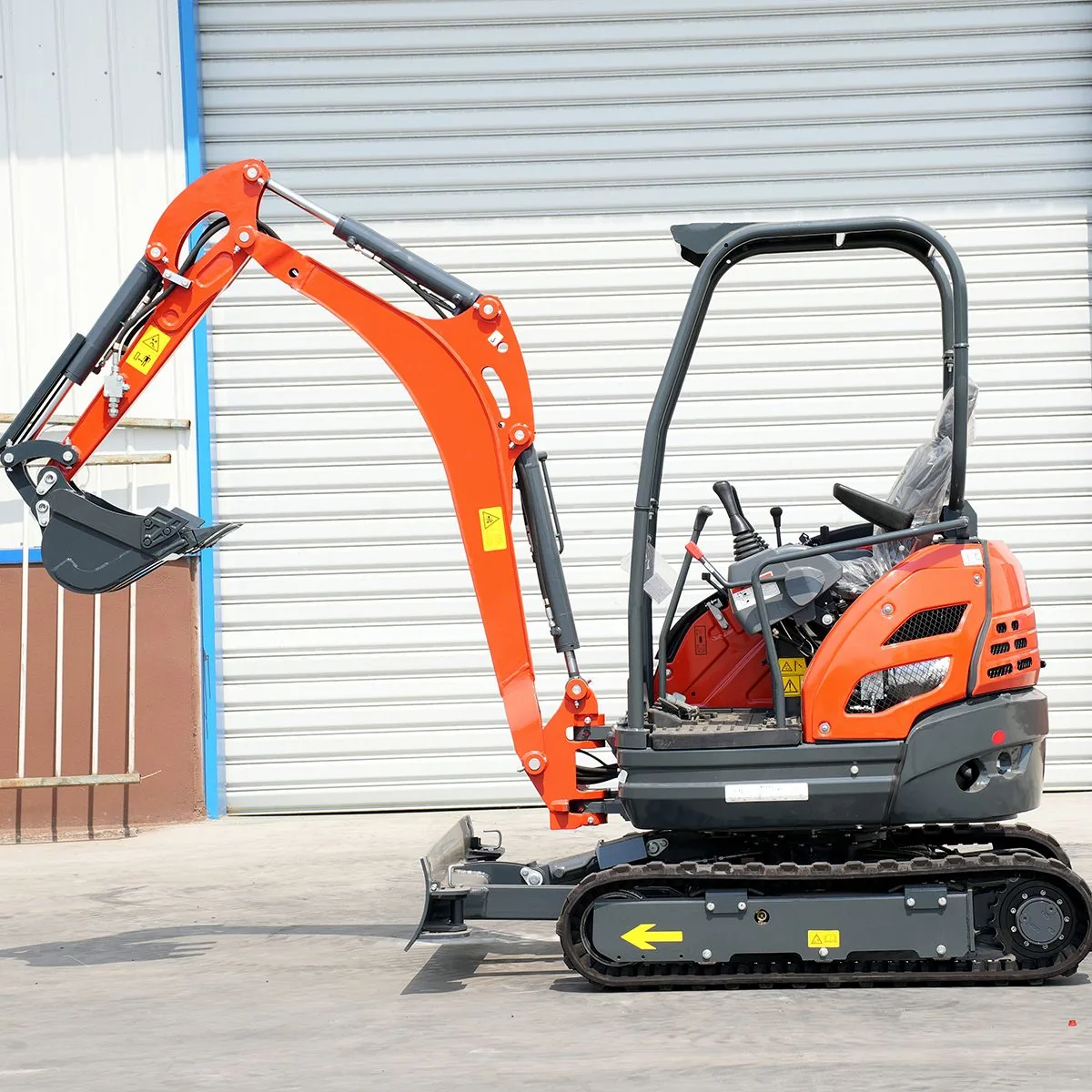

QL-25Pro - 25 – Real-life multi-angle photos – Left side

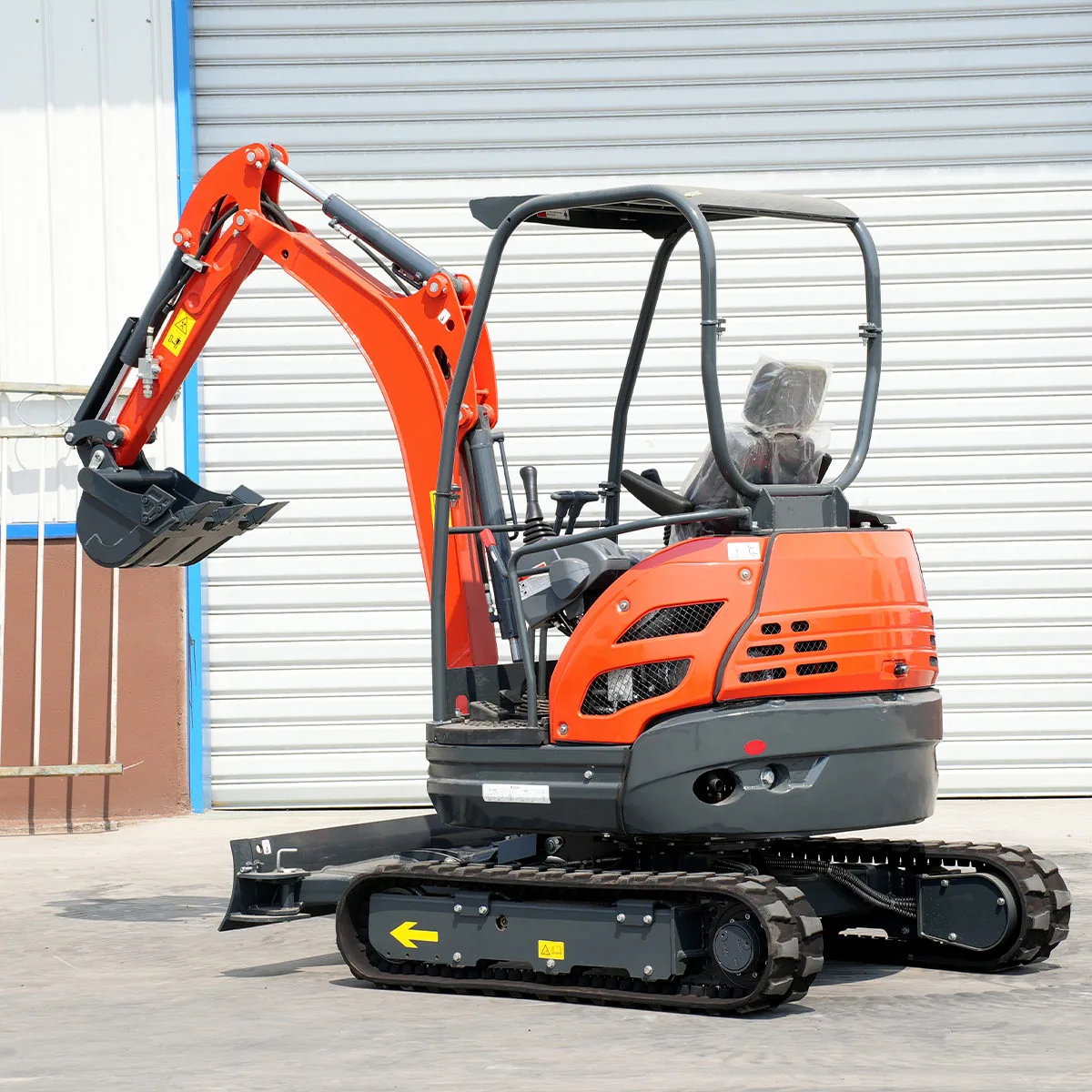

QL-25Pro - 25-Real-life multi-angle photos-Rear left

QILU MACHINERY / PRO SERIES

2.5 Ton Mini Excavator QL-25Pro

Rubber Track Mobility
Euro 5 & EPA Engine Options
Customization Support
No MOQ, Global shipping

The QL-25Pro 2.5 Ton Mini Excavator combines a 1300 mm chassis width with a Yanmar 3TNV80F diesel engine, rated at 15.2 kW. With 2430 mm digging depth and 4150 mm digging radius, its tracked platform supports construction, utility work and everyday site preparation. A variable displacement hydraulic pump, telescopic chassis and hydraulic pilot controls support versatile operation.

Operating weight 2500 kg

Max. digging depth 2430 mm

Rated power 15.2 kW

Max. digging radius 4150 mm

WhatsApp 8618266768780

Engine and optional configurations can be confirmed with our team for your application.

BUILT FOR COMPACT JOBSITES

Compact Size. Serious Capability.

From ground preparation to focused excavation, the QL-25Pro brings tracked mobility and practical digging reach to construction, utility work and everyday jobsites.

Construction sites Utility work Landscaping Earthmoving

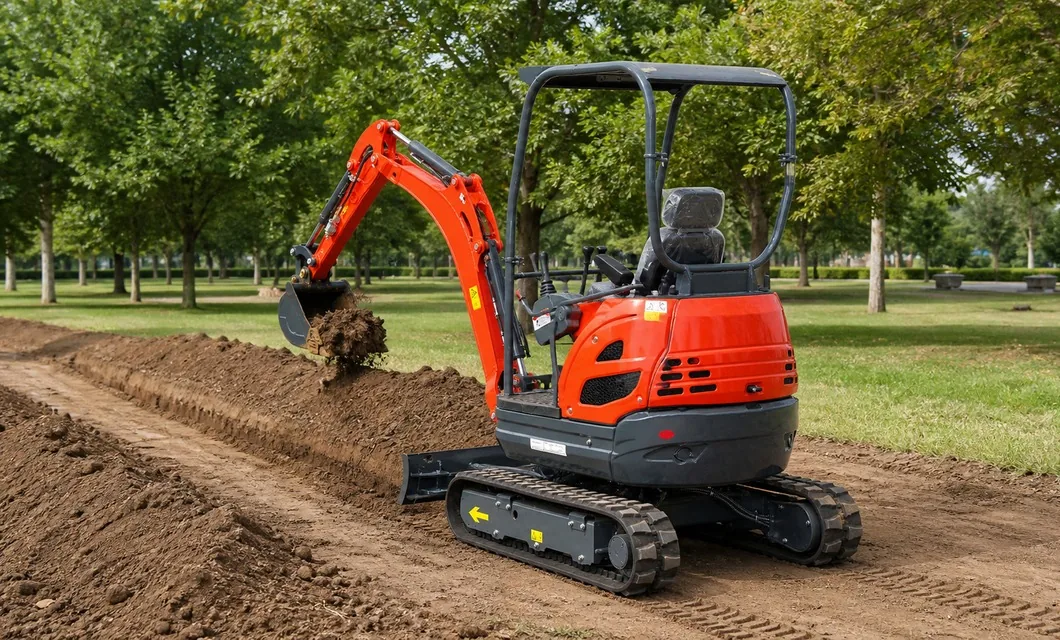

Utility trench opened through park ground

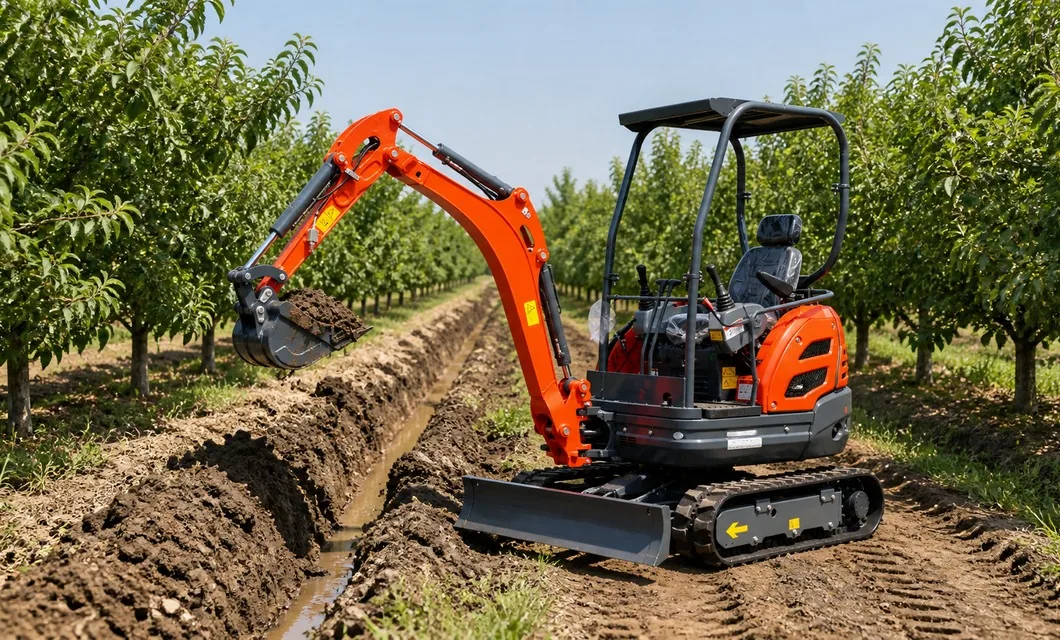

Drainage channel excavated between orchard rows

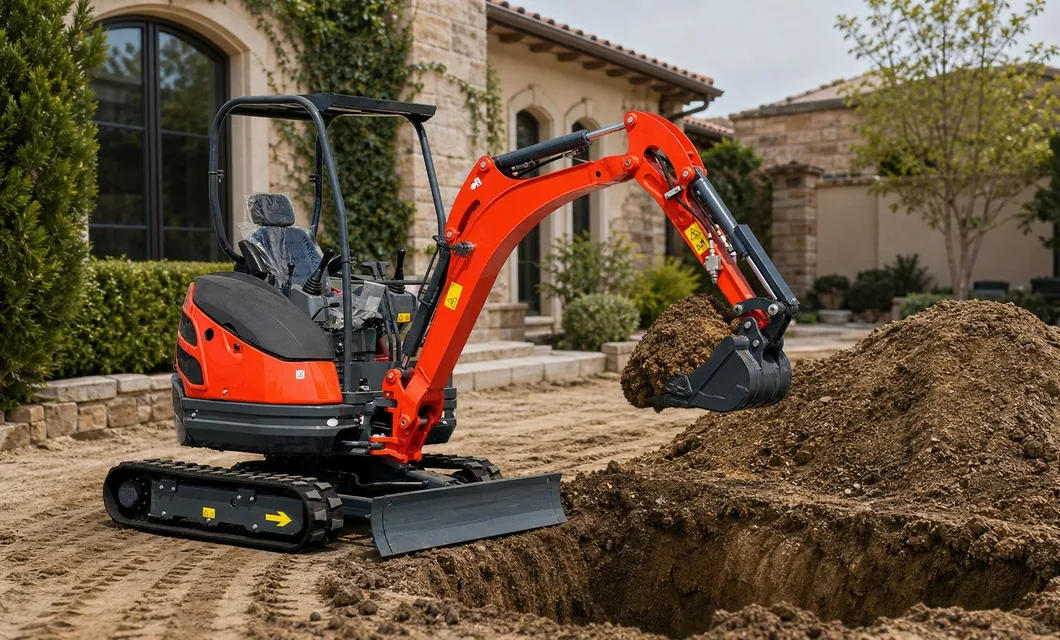

Foundation pit opened within courtyard access

SPECIFICATIONS

QL-25Pro / 2.5 TON MINI EXCAVATOR

Technical Parameters

Reliable performance. Real-world capabilities.

Rated Power 15.2 kW

Digging Radius 4150 mm

Operating Weight 2500 kg

Max. Digging Depth 2430 mm

Performance Working Scope Dimensions Configuration

Performance

ENGINEERING FOR A HIGHER STANDARD

Standard engine	Yanmar 3TNV80F diesel engine
Rated power	15.2 kW
Operating weight	2500 kg
Engine options	Yanmar 3TNV80F diesel engine(15.2 kW) Kubota D1105 diesel engine(14.0 kW)

Track type	Rubber track
Engine type	Diesel engine
Emission standards	Euro5, EPA

Working Scope

ENGINEERING FOR A HIGHER STANDARD

Max. digging height	3280 mm
Max. dumping height	2360 mm

Max. digging depth	2430 mm
Max. digging radius	4150 mm

Dimensions

ENGINEERING FOR A HIGHER STANDARD

Overall size (L × W × H)	2945 × 1300 × 2190 mm
Cabin dimensions	3500 × 1500 × 1900 mm / 10 m³

Cabin	3660 × 1500 × 2320 mm / 11.8 m³

Configuration

ENGINEERING FOR A HIGHER STANDARD

Standard equipment	Operating weight: 2500KGS; Standard engine: Yanmar 3TNV80F diesel engine; Variable displacement hydraulic pump; High / Low travel speed; Hydraulic pilot operation; Telescopic chassis; Rubber track; Swing arm; Roof; Comes with a teeth bucket(430mm); A tool box & a set of filter
Optional configuration	Steel tracks; cabin; air conditioning
Cab type	Roof
Optional cab configurations	Yes

Standard colors	Blue, Yellow, Red
Custom colors	yes
Optional attachments	See the attachments below; confirm mounting and hydraulic compatibility.
Applications	Municipal maintenance, road construction, agricultural and forestry operations, drainage and water conservancy works, construction work

COMPONENT HIGHLIGHTS

Key Details That Support Everyday Performance

From hydraulic components to operator controls and working attachments, each detail is designed for dependable operation and practical jobsite use.

UNDERSTAND THE MACHINE

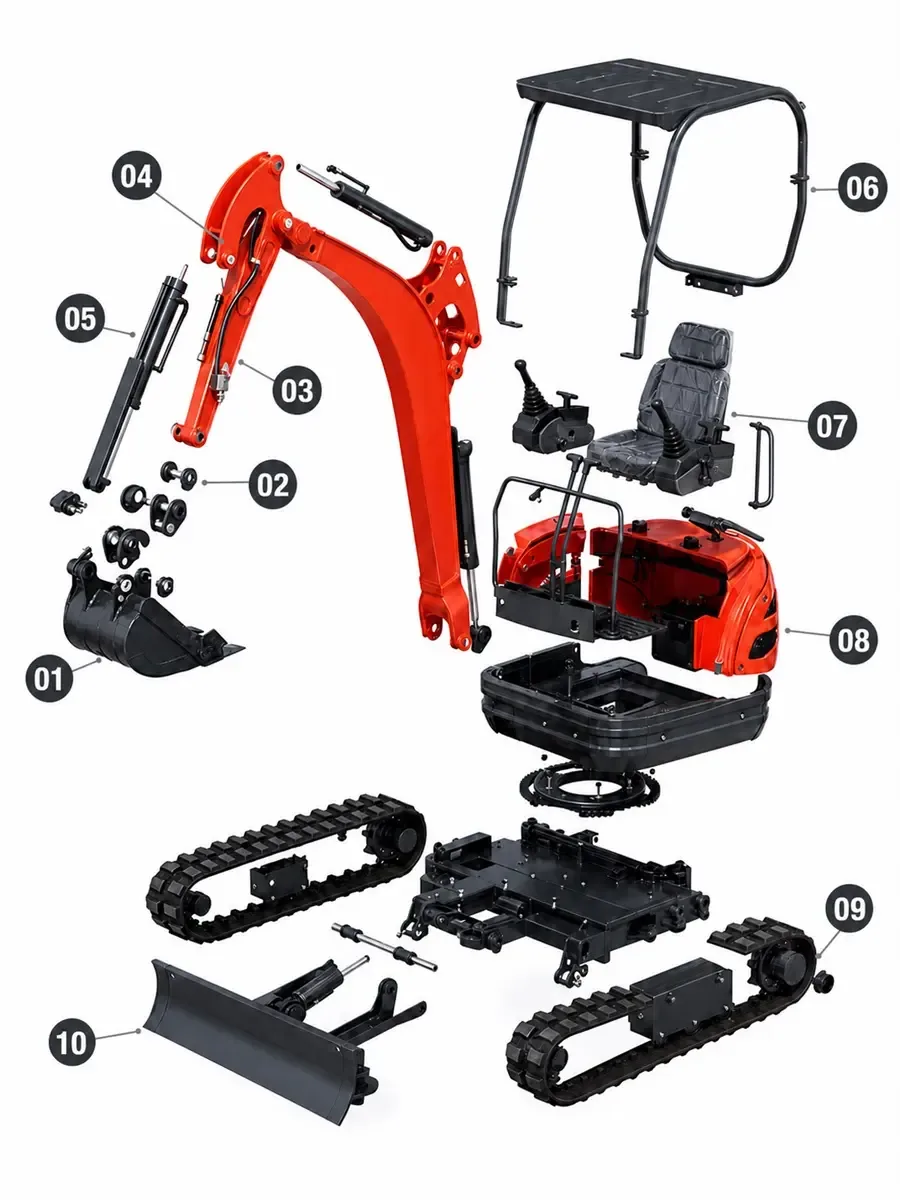

Product Structure Diagram

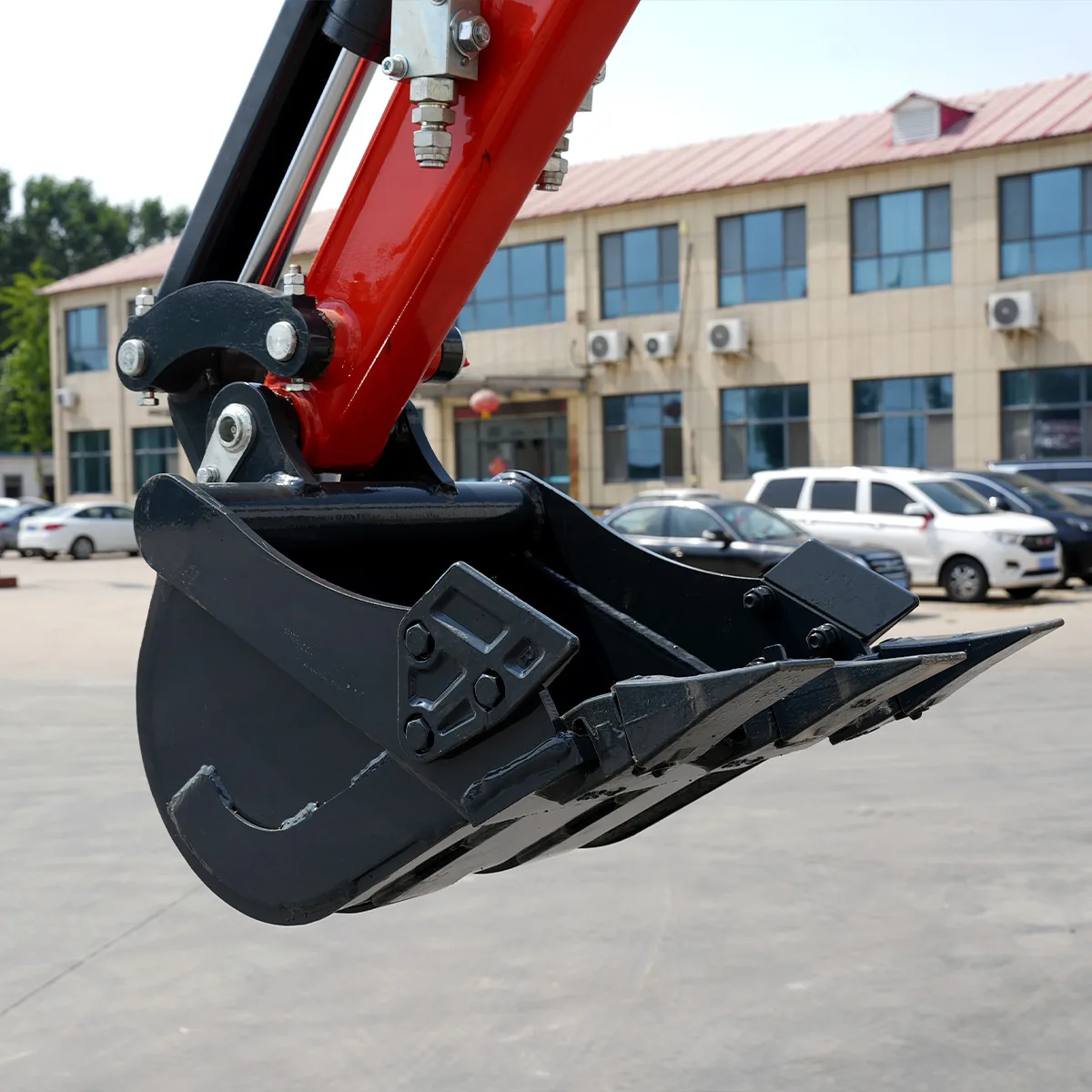

Bucket Assembly

For excavation, loading and material transfer, it is the working component in direct contact with the working‑face.

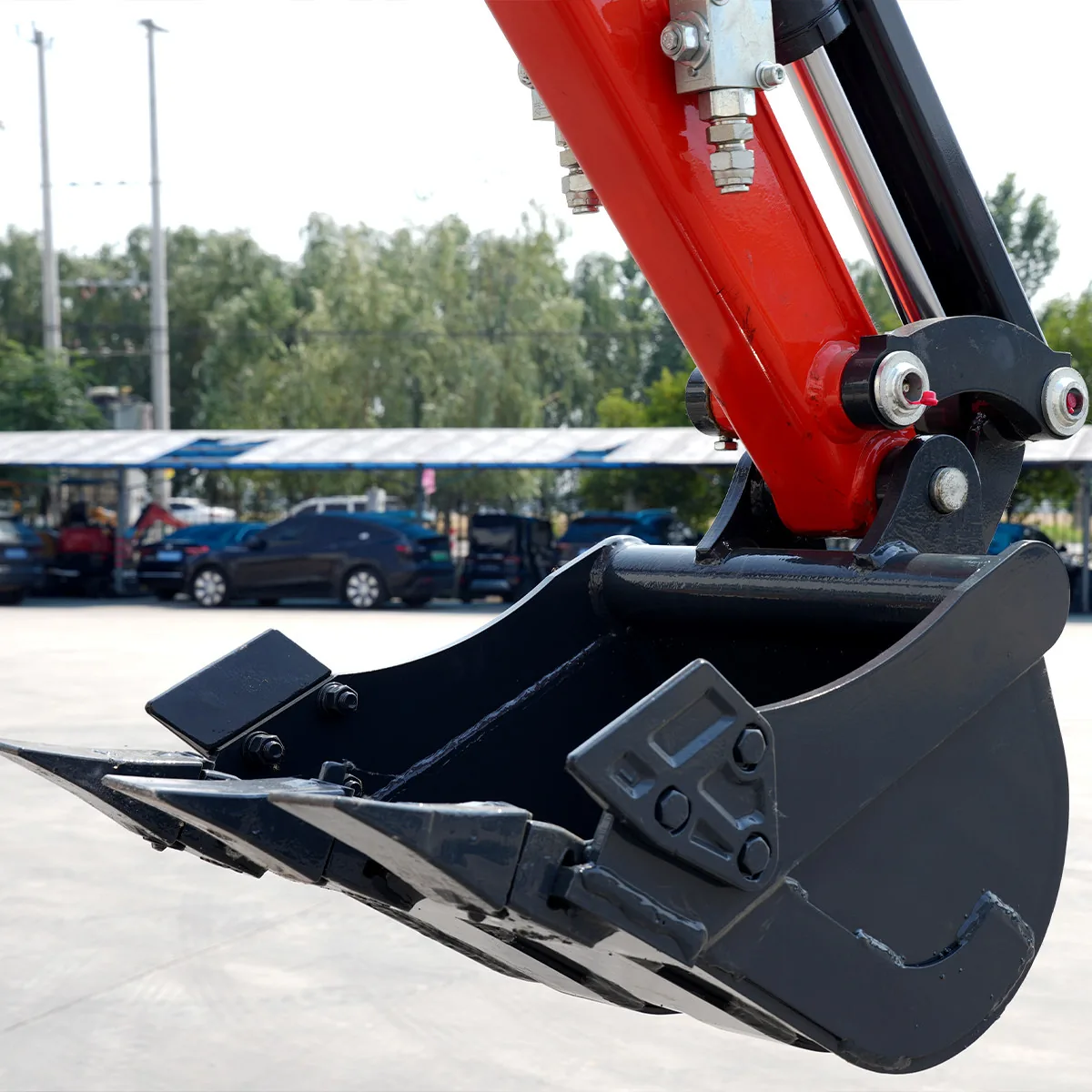

Bucket Connection Mechanism

Connects the bucket to the stick and transmits cylinder motion to realize bucket tilting.

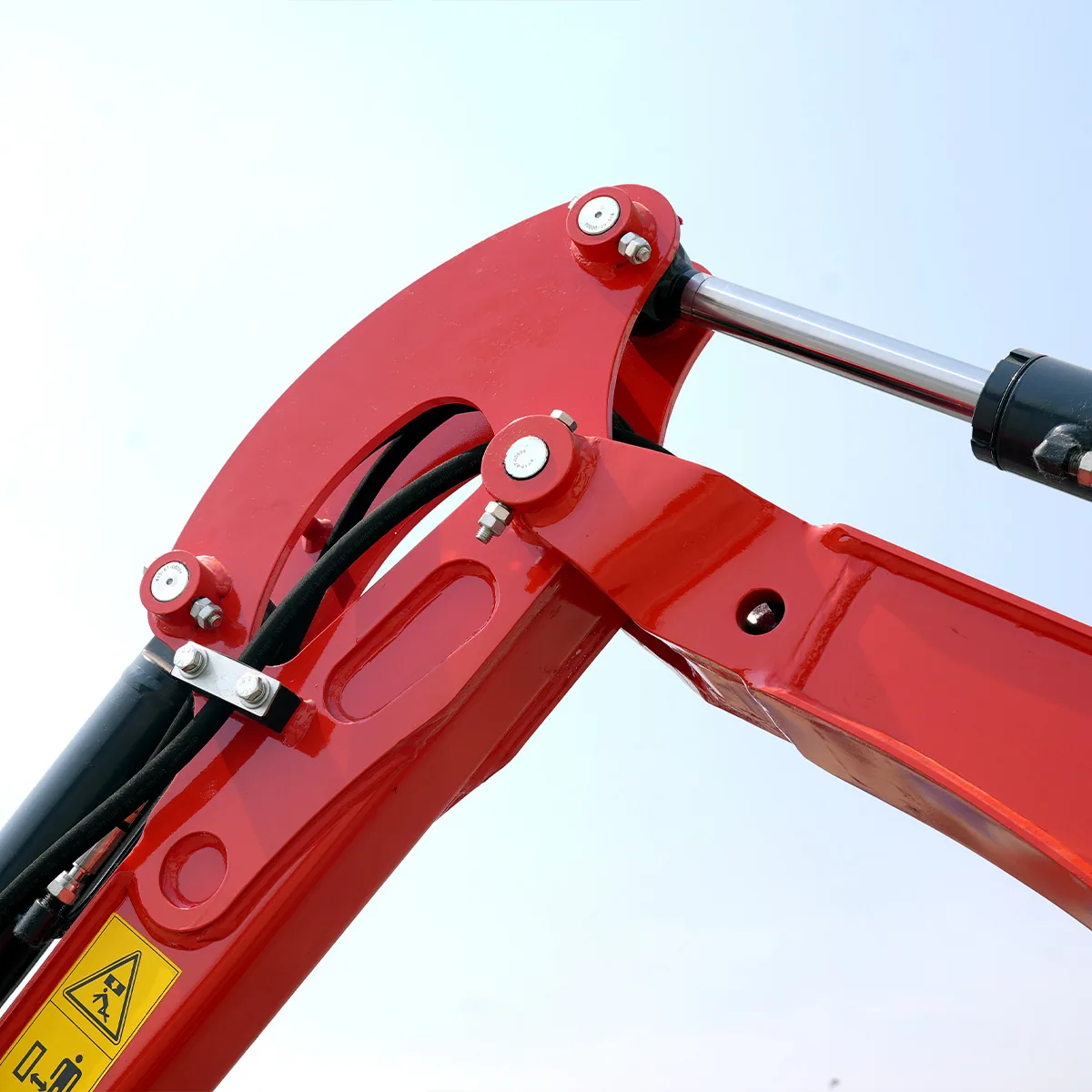

Stick Assembly

Works with the boom to extend the working range and perform forward‑reach, retraction and digging‑down operations.

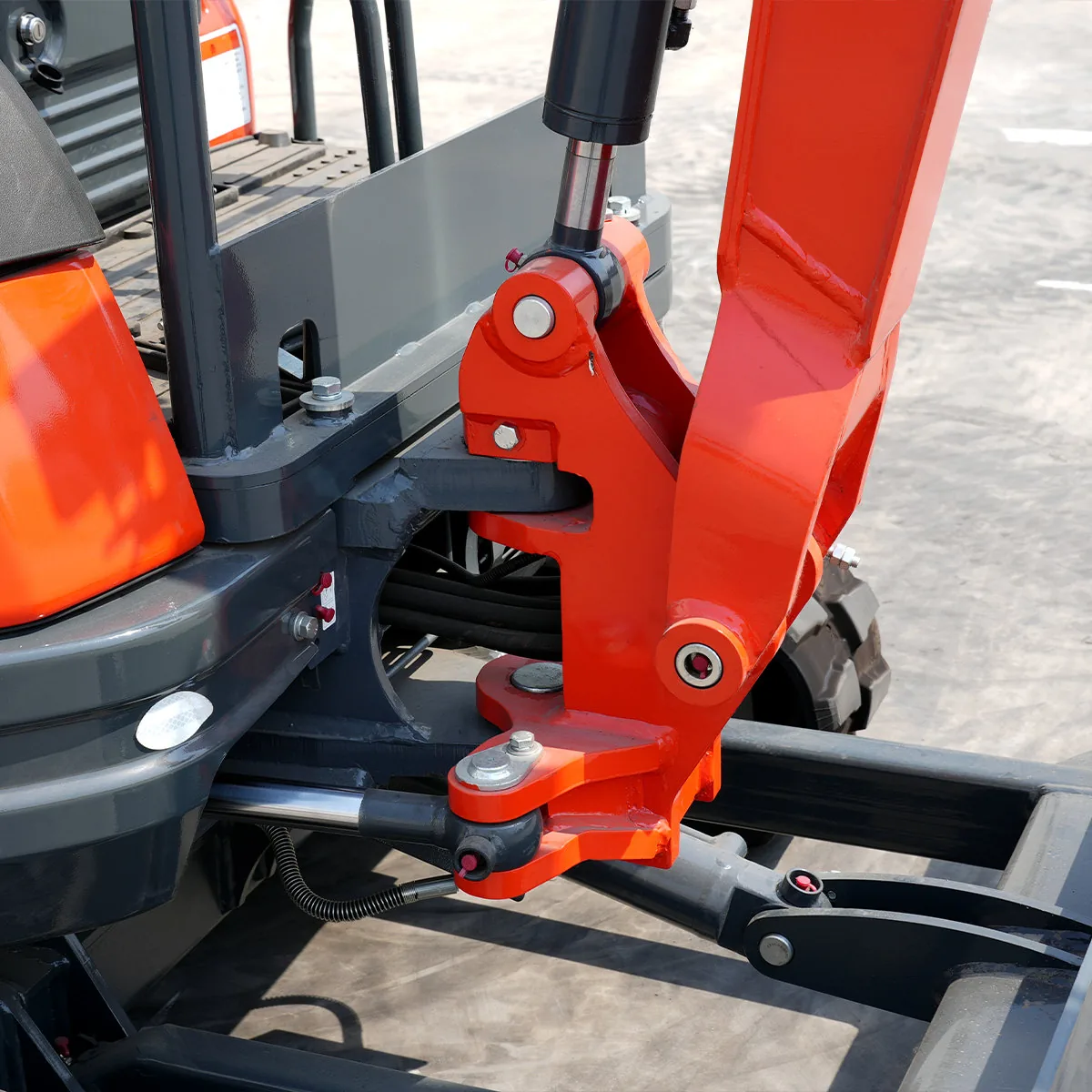

Boom Assembly

Bears main lifting and supporting loads, connecting the working attachment and upper‑carriage platform.

Hydraulic Cylinders and Pipelines

Delivers stable driving force for the movements of boom, stick and bucket.

Canopy Assembly

Provides basic shelter and structural protection for the operator area.

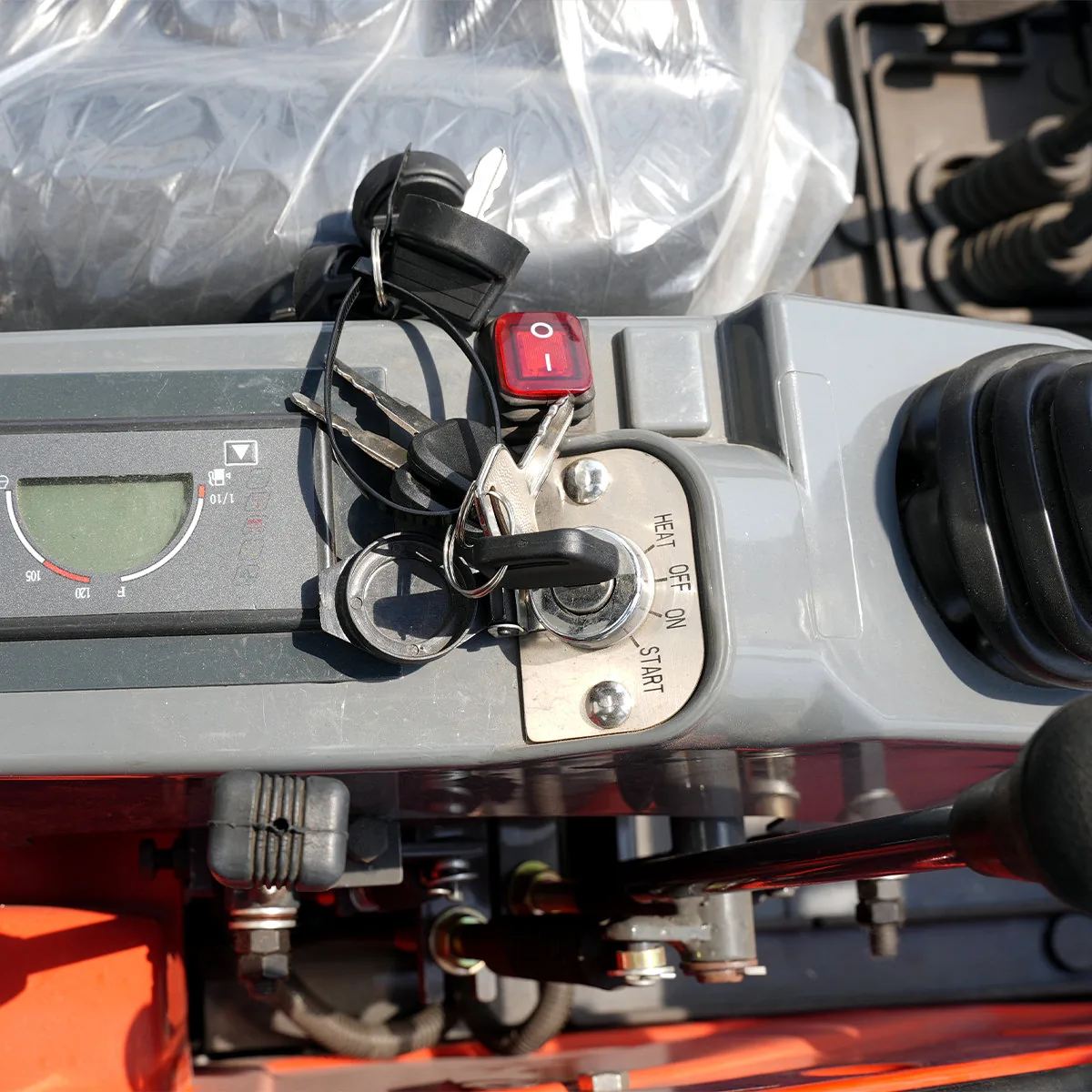

Seat & Control System

Integrates operator seat, control joysticks and control devices.

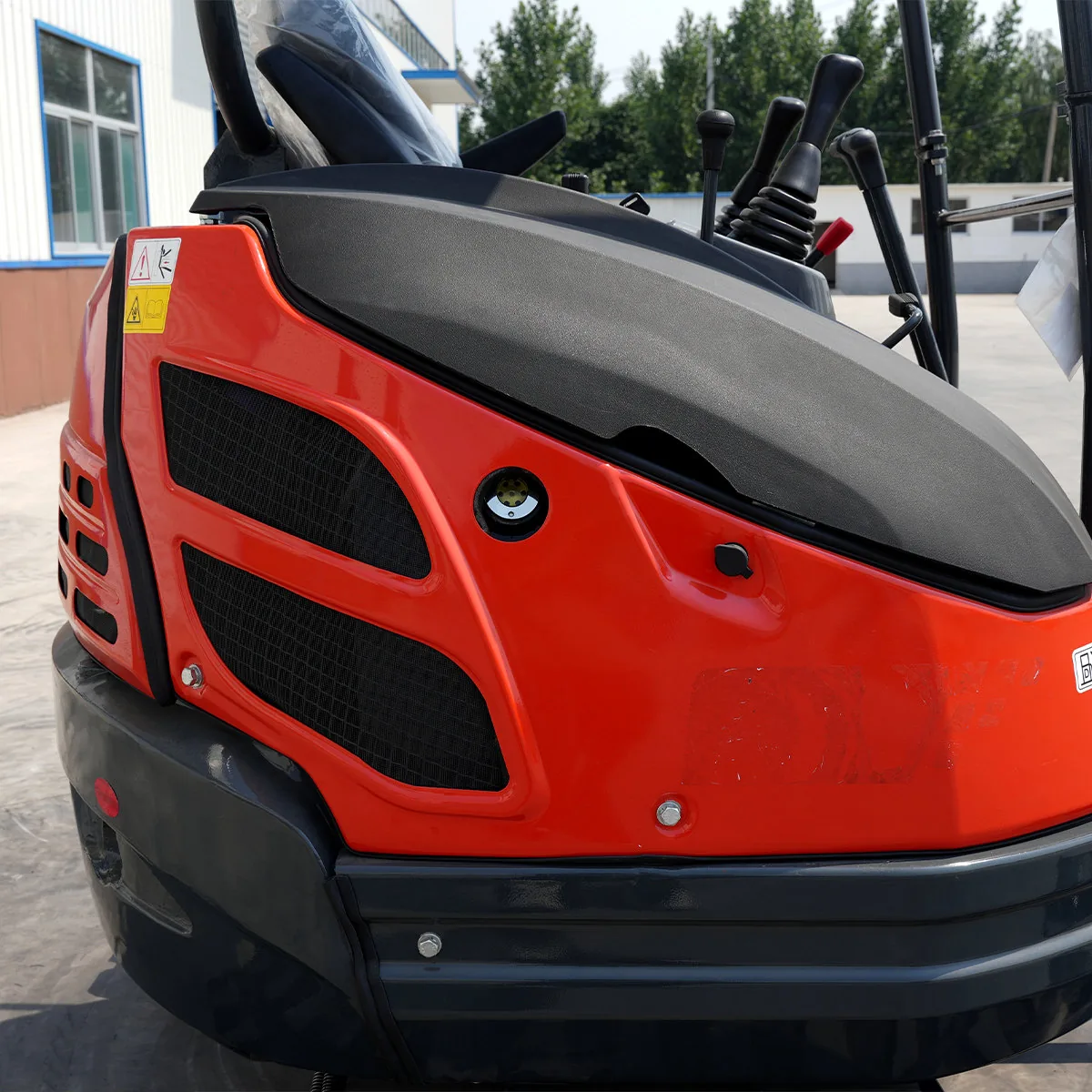

Upper‑Carriage Slewing Platform

Carries power unit, hydraulic components and engine cover, enabling upper‑structure rotation.

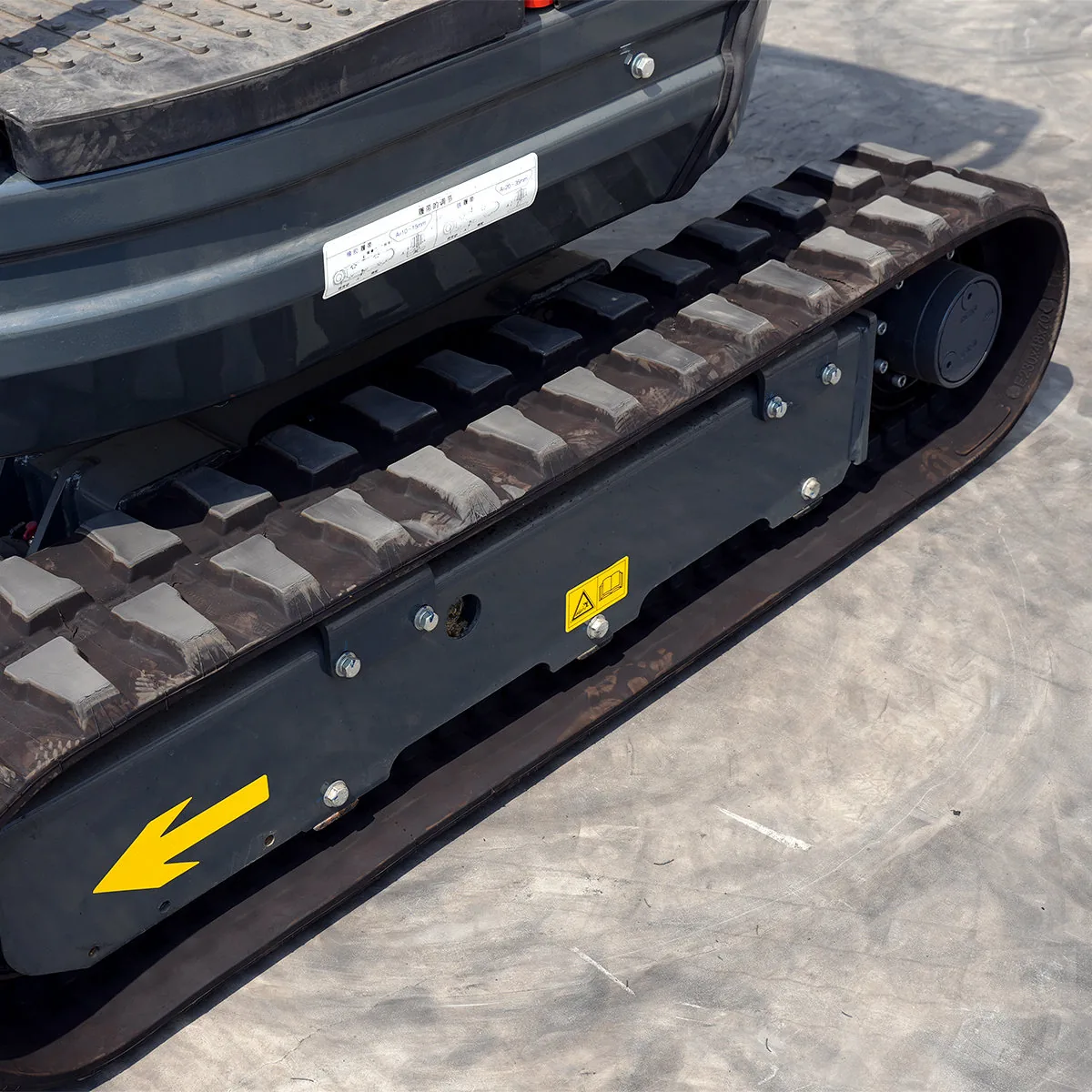

Track Undercarriage Assembly

Provides machine support, travel performance and cross‑country capability on complex terrain.

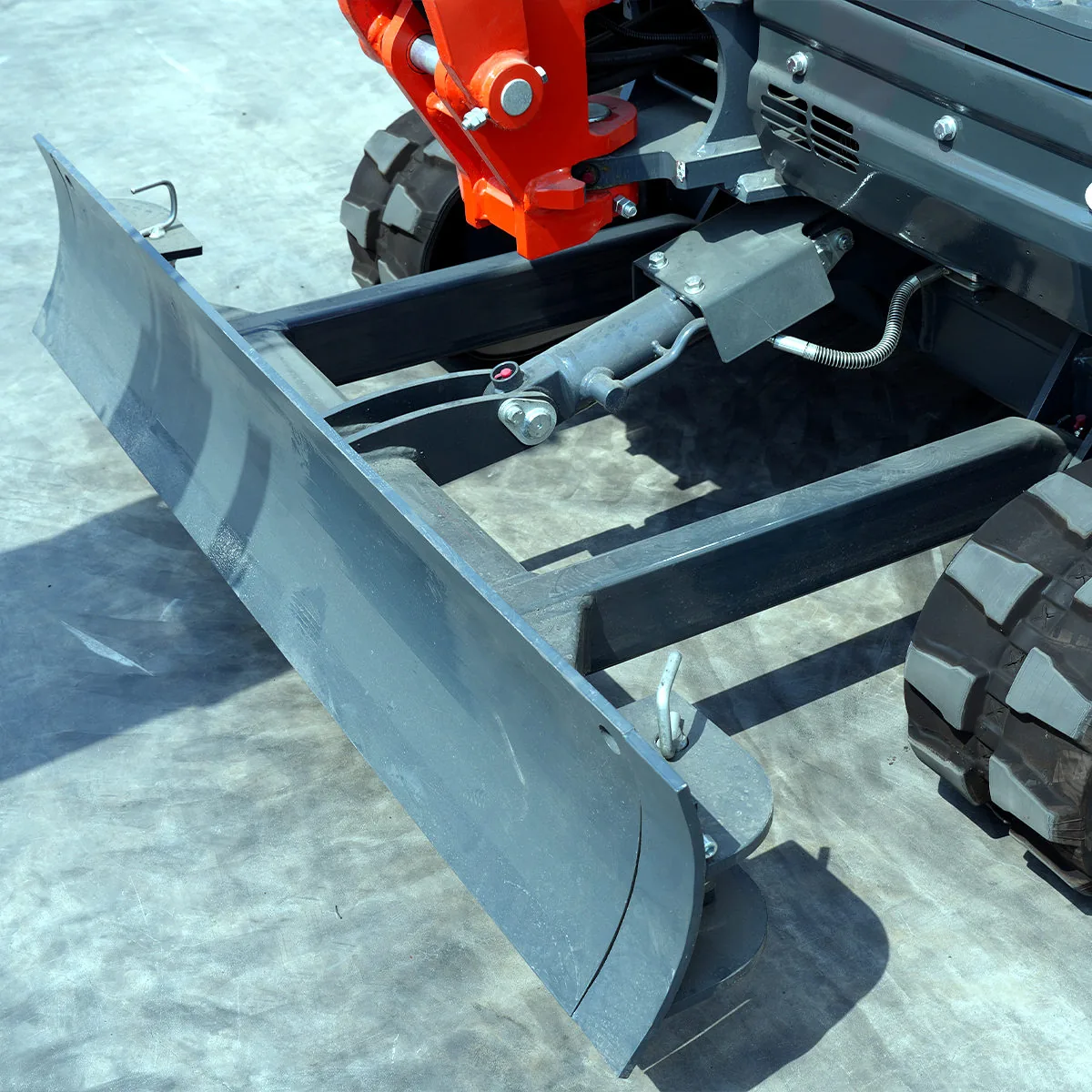

Dozer Blade Assembly
